DESCRIPTION

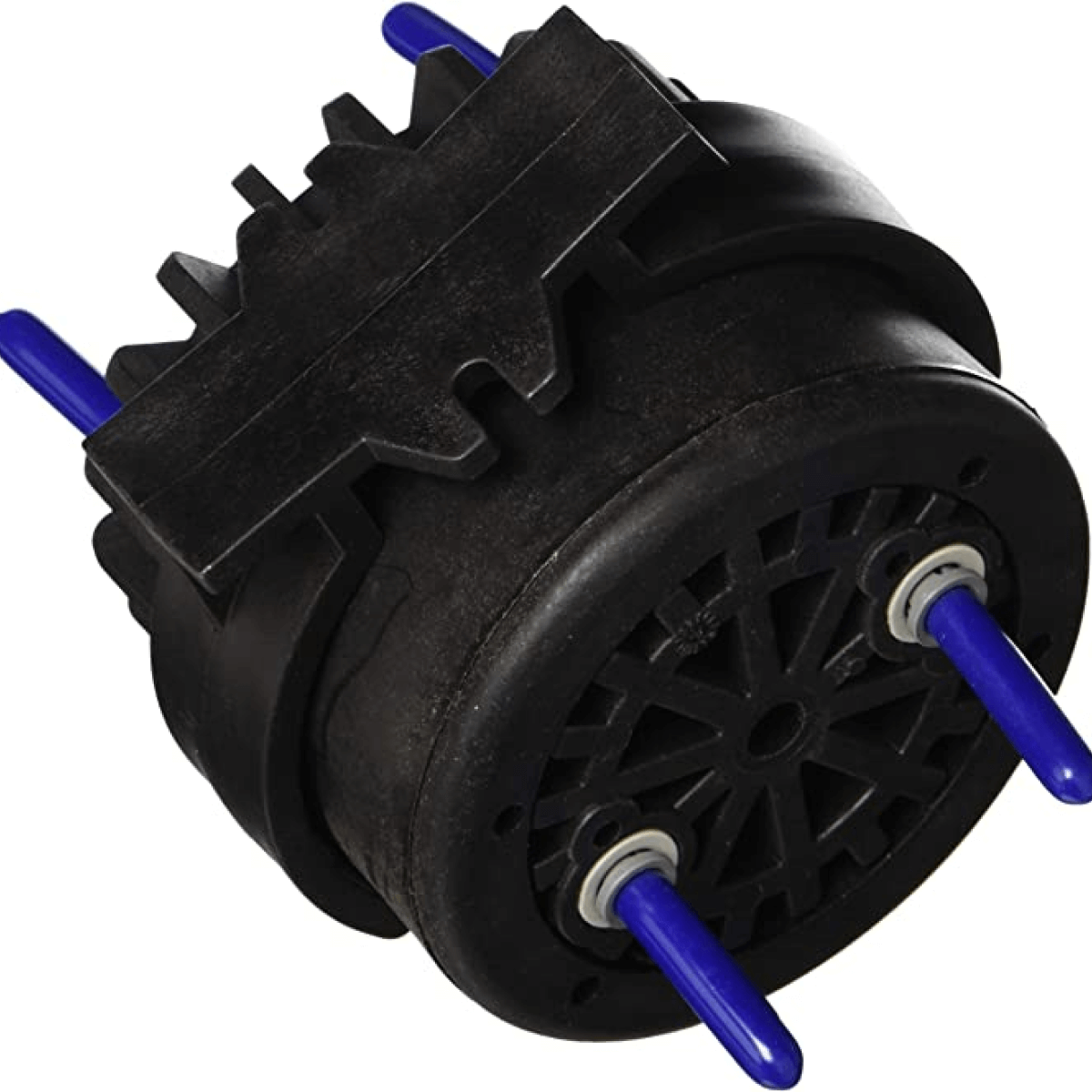

The Aquatec ERP-500 Permeate Pump will bring storage tanks up to line pressure, then shut the system down when the tank reaches capacity, removing the need for a hydraulic shut-off valve. Permeate pumps also deliver faster RO water production, higher delivery pressures, superior water quality, and extended filter/membrane capacity.
-
No electricity required. The Aquatec ERP-500 is powered by hydraulic energy from the brine water that is usually lost to the drain.
-
No loud clicking or gurgling sounds. This pump is specifically designed for residential applications where noise is a key concern. The ERP-500 includes a specially designed insert . The Permeate Pump pushes more purified water into the storage tank, reducing membrane back pressure, therefore maximizing available product tank pressure (up to 95% of feed pressure).
-
Improved efficiency. This pump dramatically improves the membrane's production, reducing waste-water by 80% or more. Basically, if an R.O. system requires 10 gallons of tap water to produce 1 gallon of pure water (10:1), the Permeate Pump should reduce this ratio below 3:1. It also decreases product tank “fill time" by up to 65%.
- Improves membrane life, prevents “TDS creep"
- For all membranes rated 10 - 50 GPD
- Effective for inlet water pressures as low as 30 PSI
- Compact size for easy installation
SPEC
- Pressure: 32 psi to 140 psi
- Max Flow Rate: 50GPM
- Push-in Size" 1/4" OD
