How to find a replacement cartridge for your pool or spa?
If the filter you are trying to replace has a part number or the replacement number on the end caps, you can search the part number on our product page to confirm if the filter is compatible.
If you don't have the above info for your cartridge, you can measure the existing one to choose the right cartridge. Please follow the steps below to get the correct measurements of the filter you are trying to replace.
1. Measure the outside diameter of the cartridge (in inches).
2. Measure cartridge length from end cap to end cap. Do not include handles, threads or extensions.
3. Identify the cartridge end cap configuration. If the top and/or bottom is open, measure the inside diameter of the opening. If the end cap is closed, please make note of its identifying features (i.e. “Handle”, “Cone”, etc.). If there is a thread on your filter, please identify the thread type.(Size & Male/Female & Coarse/Fine).
4. Make note of the manufacturer and model number of the filter into which the replacement cartridge will be installed.
5. Take note whether or not there is a center core (PVC pipe in the center).
Puroflo Replacement Filter for Pool and Spa Cleaning Systems
Puroflo YPS-INTAC Replacement Part Numbers:
INTEX pool filter pump models : 603, 604/G, 637R, 638R/G, 635T, 636T/G. 58603E, 58604E, 56635E, 56636E, 56637E, 56638E & 58623. Summer Waves canisters: RX & SFX 1000, RX & SFX 1500, RP & SFS 700/800, RP & SFS 1000, RP & SFS 1500, RP & SFS 2000 (2013 & newer), CP2000-C above ground pool filters. Compatible with: 28603EG, 530 GPH Cartridge Filter Pump, 28637EG, 1000 GPH Cartridge Filter Pump, 28635EG, 1500 GPH Cartridge Filter Pump, PLF-INTA.
**NOTE: This is a compatible spare part and the manufacturers' names and part numbers have been used for reference purposes only. Puroflo is an independent brand.**
Specifications
● Length 8 inch
● Outside Diameter 4-1/4 inch
● Filtration Area 6.8 Sq.ft.
● Part Number: YPS-INTAC
Install Instruction
Step 1 Turn Off Electricity: Before removing the filter, turn off electricity to minimize safety risks.
Step 2 Open Release Valve: Open the large plastic circular pressure release valve. You will hear a hissing sound when you open the valve, which is the air being released from the pump. Make sure that the sound completely stops before you move on.
Step 3 Remove Band and Lid: Take the restraining band off the pump and place it to the side.
Open the lid to the pump and find the device that is a long cylinder with ridges on it.
Step 4 Locate and Remove Filter: Once you have located the filter, lift it up and out of the pump.
Step 5 Replace New Filter: Place your new pool filter into the pump where the old one was. Put the lid back down and place the band back on the pump.
Step 6 Close the Release Valve: Now, close the release valve and make sure that it is tightly fastened. If the valve is not on tightly, the pressure of the pool's pump will be weak and will not work properly.

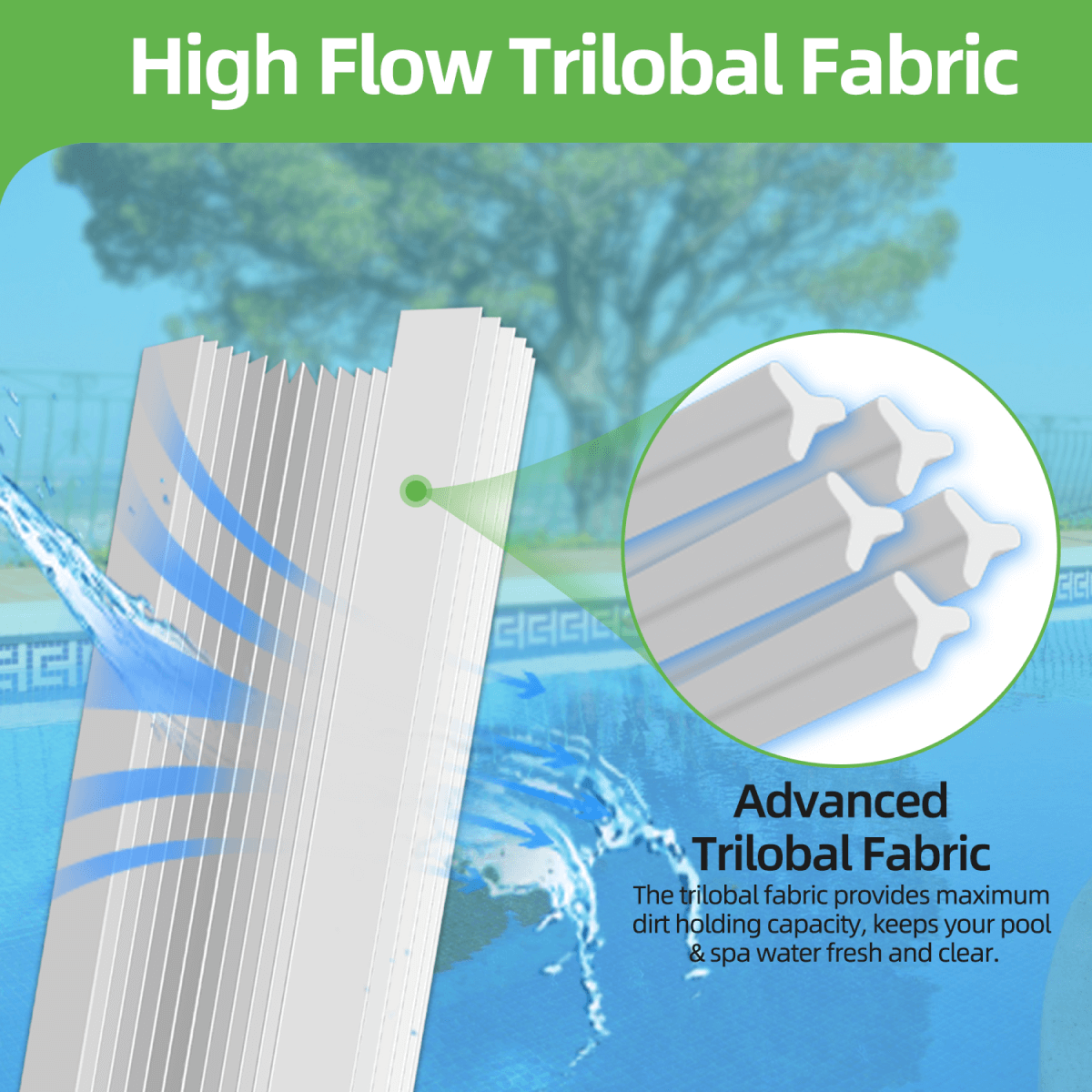

The trilobal filtration fabric provides maximum dirt holding capacity and excellent chemical resistance. The powerful filtration function keeps your pool & spa water fresh and clean.
Reinforced end caps, made from durable and chemical resistant compounds with anti-microbiological material. Resists chlorine degradation and provides support to filter material for a longer lifespan. A strong inner core assures high-pressure resistance for extra strength and durability.

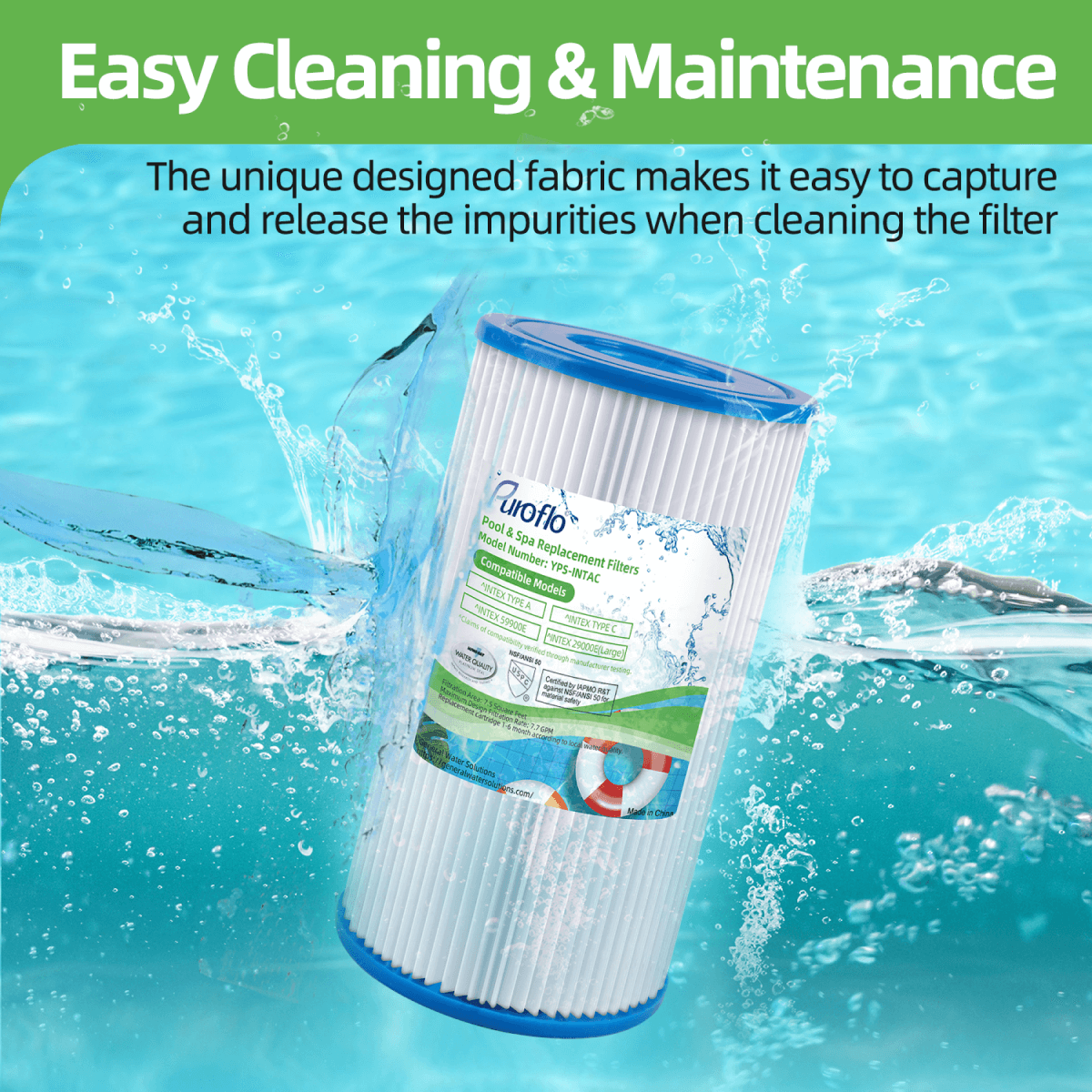

The high-performance 4OZ fabric prolongs service life by 25%. Puroflo pool filter cartridges are reusable. Wash and provide maintanence frequently to increase its lifespan.
Sharp, uniform pleated folds maximize the water flow, minimize pressure loss. Increased spacing between pleats allows for full use of the pleated surface.
SKU | YPS-INTAC | YPS-INTB | YPS-INTH |
---|---|---|---|
Dimensions | 8" x 4.25" x 4.25" | 10" x 5.88" x 5.88" | 4" x 3.63" x 3.63" |
Length | 8" | 10" | 3-5/8" |
Outside Diameter | 4-1/4" | 5-3/4" | 4" |
Top & Bottom Inner Diameter | 2" | 1.9" | 2" |
SQFT Filtration | 6.8 Sq. ft | 15.4 Sq. ft | 2.7 Sq. ft |
Filtration Rate | 6.8 GPM | 14.3 GPM | 2.9 GPM |
Replacement Cartridge | 2-6 month depending on local water quality | 2-6 month depending on local water quality | 2-6 month depending on local water quality |
Compatible with | INTEX TYPE A or C | INTEX TYPE B | INTEX TYPE H |
Package Quantity | 6 Pack | 3 Pack | 6 Pack |
